PSA Arduino Valve Controller

Enter your search terms Submit search form

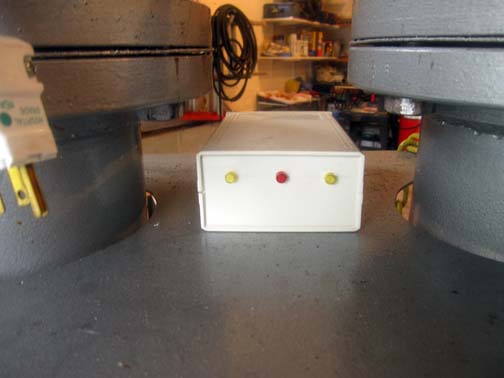

A simple arduino-based controller manages two solid state relays. The arduino runs a cycling program and manages the gates on two triacs. These allow the controller to energize and de-energize the Versa valves with 120vac.

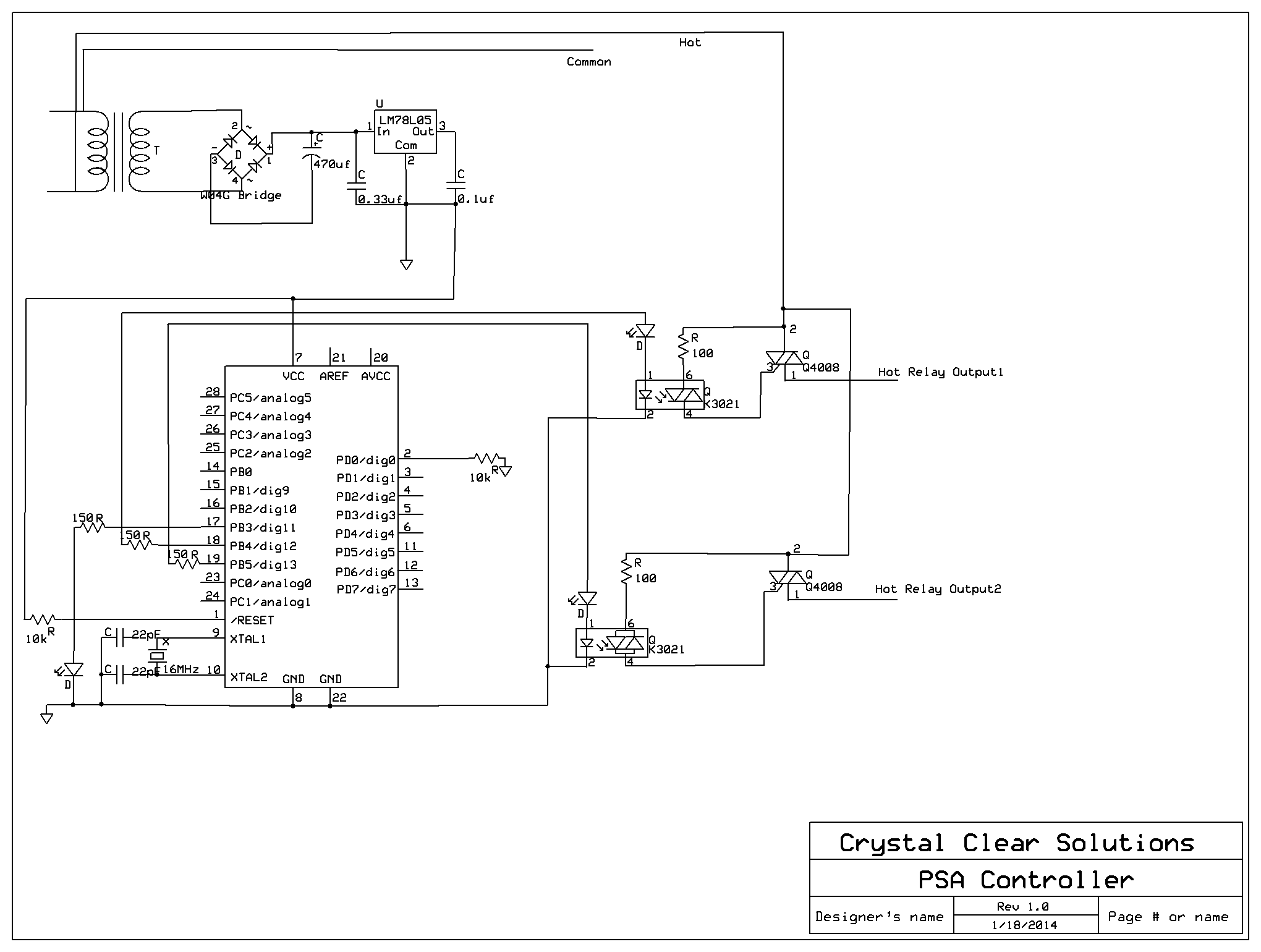

Below are the timing diagram and the controller schematic. The c-code is simple enough to write.



Download arduino code here.

Again, you can see how this is used with my liquid nitrogen generator.

You can watch a video of this device here.

You may also be interested in my induction heater tutorial.
